How To Double Winch Pulling Power: Guide to Snatch Block Physics and Techniques

Table of Contents

Learning how to double winch pulling power is one of the most valuable skills any off-road enthusiast or recovery specialist can master. When you’re facing an extraction that seems beyond your winch’s rated capacity, understanding the simple physics of mechanical advantage can transform your recovery capabilities without requiring a larger, more expensive winch. This comprehensive guide will walk you through the principles, equipment, and techniques needed to effectively double your winch’s pulling power, ensuring you’re prepared for even the most challenging recovery situations.

The secret to unlocking this increased capability lies in a fundamental piece of recovery equipment: the snatch block. This seemingly simple pulley device can effectively double your pulling power when properly configured, turning a 10,000-pound winch into a 20,000-pound pulling machine. Beyond just raw power, understanding these techniques provides greater control, reduces strain on your equipment, and opens up possibilities for complex recoveries that would otherwise be impossible with a single-line pull.

Understanding the Physics Behind Doubling Winch Power

Before diving into the practical techniques, it’s crucial to understand why and how a snatch block can double your winch’s pulling capacity. The principle is rooted in basic physics and mechanical advantage.

The Mechanical Advantage of Pulley Systems

A snatch block is essentially a specialized pulley designed for recovery operations. When you run your winch line through a snatch block and back to your vehicle or the anchor point, you create a simple pulley system that distributes the load across two lines instead of one . This configuration effectively halves the force required by the winch to move a given load, which means your winch can pull twice the weight it could with a direct single-line pull .

The Trade-Off: Power vs. Line Speed and Length

This mechanical advantage doesn’t come without trade-offs. When you double your pulling power using a snatch block, you also halve both your line speed and the effective length of your winch line . This occurs because your winch must spool twice as much cable to move the load the same distance. Understanding this trade-off is crucial for planning recoveries, especially when working with limited space or when a quick extraction is necessary.

Calculating Your Enhanced Capability

The mathematics behind this power doubling is straightforward. If your winch has a maximum pulling capacity of 10,000 pounds, a properly configured double-line pull using a snatch block can theoretically allow you to pull up to 20,000 pounds . However, it’s essential to remember that every component in your recovery system—including shackles, straps, and the winch mount itself—must be rated for these increased forces to ensure safety throughout the operation .

Essential Equipment for Doubling Winch Power

Having the right equipment is fundamental to successfully and safely doubling your winch’s pulling power. Using improperly rated components can lead to catastrophic equipment failure under load.

Snatch Block Selection and Specifications

The centerpiece of any power-doubling setup is the snatch block. When selecting a snatch block, several factors demand consideration:

  • Break Strength Rating: Choose a snatch block with a break strength significantly exceeding your expected loads. For example, the Rhino USA Recovery Snatch Block offers a 27,056-pound break strength, providing a substantial safety margin for most recovery scenarios .
  • Construction Materials: Look for robust construction combining aerospace polymer pulleys with powder-coated drop-forged steel components. This combination provides both strength and smooth operation while resisting the elements .
  • Compatibility: Ensure the snatch block is compatible with your specific winch line, whether you’re using synthetic rope or steel cable, and verify the shackle pin size matches your other recovery gear .

Supporting Recovery Gear

Beyond the snatch block itself, several other pieces of equipment are essential for a safe and effective double-line pull:

  • D-Ring Shackles: High-quality, properly rated shackles are necessary for connecting the snatch block to anchor points and recovery points .
  • Tree Saver Straps: When using natural anchors like trees, a tree saver strap protects both the tree and your equipment while providing a secure attachment point .
  • Weight/Damper: Placing a weight or specialized damper in the middle of your winch cable can help prevent dangerous cable snap-back in case of equipment failure .
  • Gloves and Eye Protection: Never handle recovery equipment without heavy-duty gloves and safety glasses to protect against sharp edges and debris.

Table: Essential Equipment for Doubling Winch Power

EquipmentSpecification RequirementsPurpose in Double-Line Setup
Snatch BlockMinimum break strength 2x winch capacity; compatible with winch line typeCreates mechanical advantage by dividing load across two lines
D-Ring ShacklesRated for anticipated loads; correct pin size for snatch block and recovery pointsSecure connection between snatch block, anchor points, and recovery points
Tree Saver StrapMinimum length for safe tree attachment; appropriate weight ratingProtects trees and provides anchor point when natural anchors are used
Winch DamperHeavy blanket or specialized damper productReduces dangerous cable whip in case of equipment failure

Step-by-Step Guide to Doubling Your Winch Power

Executing a proper double-line pull requires methodical setup and attention to detail. Follow these steps to ensure a safe and effective recovery.

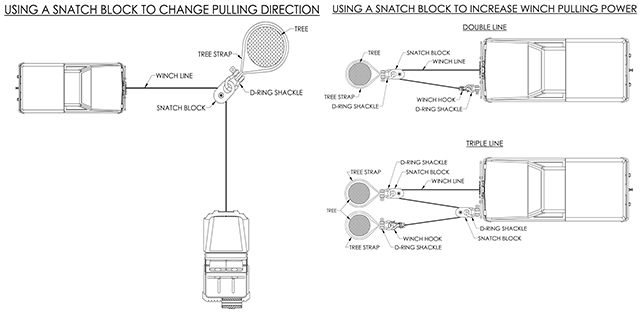

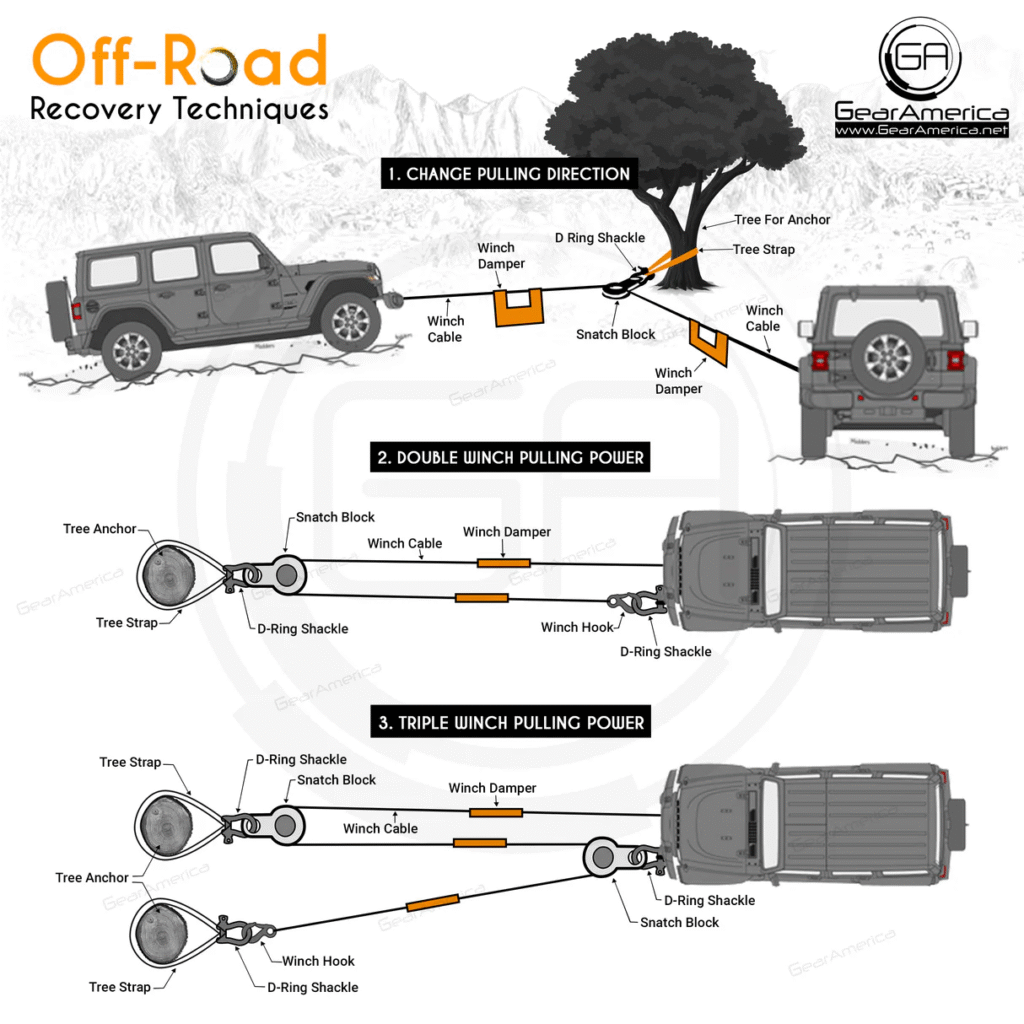

Self-Recovery Configuration

When you need to extract your own vehicle using a double-line pull:

  1. Identify a Secure Anchor Point: Locate a sturdy, immovable object such as a large tree or boulder directly in front of your vehicle. Ensure the anchor is capable of withstanding the anticipated forces .
  2. Attach Tree Saver and Snatch Block: Secure your tree saver strap around the anchor, then connect the snatch block to the strap using a rated D-ring shackle .
  3. Run Winch Line Through Snatch Block: Feed your winch line through the snatch block pulley, ensuring the line sits properly in the pulley groove without crossing or binding .
  4. Connect to Vehicle Recovery Point: Run the winch hook back to a rated recovery point on your vehicle and attach it securely using another shackle .
  5. Apply Tension and Winch: With all connections verified, slowly apply power to the winch, monitoring all components for signs of stress or improper operation throughout the pull .

Assisted Recovery Configuration

When using another vehicle as an anchor point to extract a stuck vehicle:

  1. Position Recovery Vehicle: Place the recovery vehicle directly opposite the stuck vehicle, ensuring both are in line with the intended pull direction .
  2. Attach Snatch Block to Stuck Vehicle: Connect the snatch block to a rated recovery point on the stuck vehicle using a D-ring shackle .
  3. Run Winch Line Through Snatch Block: Feed the winch line from the recovery vehicle through the snatch block attached to the stuck vehicle .
  4. Connect to Recovery Vehicle: Run the winch hook back to a rated recovery point on the recovery vehicle itself and attach it securely .
  5. Execute Controlled Winching: The recovery vehicle now winches itself toward the stuck vehicle, effectively doubling the pulling power through the snatch block configuration .

Advanced Techniques and Configurations

Once you’ve mastered the basic double-line pull, more advanced configurations can address complex recovery scenarios.

Multiple Snatch Block Setups

For particularly challenging recoveries requiring more than doubled power, multiple snatch blocks can be employed in various configurations:

  • Three-to-One Advantage: Using two snatch blocks in a specific configuration can potentially triple your winch’s pulling power, though this further reduces line speed and available cable length .
  • Dual-Angle Pulls: Two snatch blocks can be positioned at different anchor points to create a dual-angle pull, providing precise control over the recovery direction .
  • Redirected Force Applications: In situations where a direct pull isn’t possible, snatch blocks can redirect force around obstacles while maintaining mechanical advantage .

Complex Recovery Scenarios

Different stuck situations call for specialized applications of the double-line technique:

  • Deep Mud Extractions: In suction-creating mud, a high anchor point created with a snatch block helps lift the vehicle upward, breaking the suction more effectively than a horizontal pull .
  • Vertical Lifts: While not typically recommended for vehicle recovery, snatch blocks can create mechanical advantage systems for controlled lifting operations when absolutely necessary .
  • Rollover Recoveries: Righting a rolled vehicle requires careful snatch block placement to control the pivot point and direction of righting .

Critical Safety Considerations and Best Practices

Working with doubled winch forces introduces significant hazards that demand rigorous safety protocols.

Pre-Recovery Equipment Inspection

Before any recovery attempt, thoroughly inspect all equipment:

  • Winch Line: Check for fraying, kinks, or damaged sections in synthetic rope or steel cable.
  • Snatch Block: Verify the pulley rotates freely and shows no signs of cracking or deformation.
  • Shackles and Connectors: Ensure all pins are properly seated and threads are undamaged.
  • Recovery Points: Confirm vehicle recovery points are securely mounted to the frame and show no signs of stress or corrosion.

During Operation Safety Protocols

While executing the recovery:

  • Establish Safety Zones: Keep all non-essential personnel at a distance of at least 1.5 times the length of the winch line .
  • Use Dampers: Always place a damper (heavy blanket or specialized product) over the winch line to reduce snap-back danger .
  • Communicate Clearly: Designate a single spotter to communicate with the winch operator using clear, predetermined hand signals .
  • Monitor Equipment Temperature: Watch for overheating in both the winch motor and snatch block, pausing if necessary to prevent damage .

Load Management and Limitations

Understanding the limitations of your setup is crucial for safety:

  • Respect Working Load Limits: Never exceed the working load limits of any component in your system, remembering that these limits apply to the entire system, not just individual pieces .
  • Account for Angle Forces: Recognize that anchor angles can significantly increase actual loads on equipment beyond the weight being pulled.
  • Plan for the Worst: Always have an escape path and consider what might happen if any component fails during the recovery.

Troubleshooting Common Double-Line Pull Issues

Even with proper setup, you may encounter challenges during recovery operations.

Uneven Spooling and Line Management

With twice the cable moving through the system, proper spooling becomes increasingly important:

  • Guide the Line: Carefully guide the cable onto the winch drum to ensure even layering and prevent binding.
  • Avoid Cross-Tension: Maintain appropriate tension during spooling to prevent the cable from digging into lower layers.
  • Reposition as Needed: Don’t hesitate to reposition vehicles or anchors if the line begins spooling unevenly.

Reduced Speed Management

The halved line speed inherent in double-line pulls requires patience and strategy:

  • Plan for Extended Time: Factor in the significantly slower progress when assessing recovery timeframes.
  • Use Burst Operation: For electric winches, consider intermittent operation to prevent motor overheating during extended pulls.
  • Clear the Path: Ensure the recovery path is as clear as possible to minimize resistance that could further slow progress.

Anchor Point Concerns

The increased forces involved magnify anchor point considerations:

  • Reinforce Marginal Anchors: Use multiple anchor points distributed with equalization systems when dealing with questionable anchors.
  • Monitor Anchor Integrity: Continuously watch anchor points for signs of movement, deformation, or failure throughout the operation.
  • Have Backup Anchors: Identify secondary anchor points before beginning the recovery in case your primary anchor fails.

Maintaining Your Snatch Block and Associated Gear

Proper maintenance ensures your equipment will perform when needed and extends its service life.

Regular Inspection Protocols

Implement a consistent inspection routine:

  • Post-Use Inspection: After each use, thoroughly clean and inspect all equipment for damage, paying special attention to moving parts and load-bearing surfaces.
  • Periodic Deep Inspection: Regularly disassemble snatch blocks (if designed for it) to inspect internal components for wear, corrosion, or damage.
  • Documentation: Keep a log of equipment usage and inspections to identify patterns or emerging issues.

Cleaning and Storage Recommendations

Proper care between uses:

  • Clean Thoroughly: Remove all dirt, mud, and debris that could interfere with operation or hide damage.
  • Dry Completely: Prevent corrosion by ensuring all components are completely dry before storage.
  • Proper Storage: Store recovery gear in clean, dry environments protected from UV exposure and temperature extremes.

Expanding Your Recovery Capabilities Beyond the Basics

Mastering the double-line pull opens the door to more advanced recovery techniques and equipment configurations.

Integrating Additional Recovery Methods

The double-line pull can be combined with other recovery techniques:

  • Bridging Systems: Use multiple snatch blocks to create bridging configurations for particularly complex recoveries.
  • Progressive Recovery: Employ a series of staged recoveries using different snatch block configurations for extremely challenging situations.
  • Multi-Vehicle Coordination: Coordinate multiple winching vehicles using snatch blocks to distribute load and create compound pulling systems.

Equipment Upgrades and Specialized Gear

As your skills advance, consider specialized equipment enhancements:

  • Extended Winch Lines: Longer synthetic ropes provide more flexibility for complex rigging scenarios.
  • Additional Snatch Blocks: Having multiple snatch blocks of different sizes expands your configuration options.
  • Rigging Plates: These specialized connectors simplify complex multi-anchor setups.

Conclusion: Mastering the Art of Mechanical Advantage

Learning how to double winch pulling power using a snatch block represents a fundamental advancement in recovery capabilities for any off-road enthusiast or professional. This technique transforms your existing winch into a more powerful tool without the expense of upgrading to a larger unit, while simultaneously teaching valuable principles of physics, equipment management, and safety consciousness.

The true mastery of this technique comes not just from understanding the basic configuration, but from recognizing when and how to apply it in varied recovery scenarios. From simple self-recovery situations to complex multi-vehicle extractions, the ability to double your winch’s power provides confidence and capability when facing challenging terrain and recovery situations.

Remember that with increased power comes increased responsibility. The forces involved in doubled winch pulls demand rigorous attention to equipment ratings, setup details, and safety protocols. By respecting these forces and following the guidelines outlined in this comprehensive guide, you’ll be prepared to tackle recoveries that would otherwise be impossible, returning home safely from even the most epic adventures.
